Drop Block Installation Manual

This is instruction for an item sold by me on eBay

Click to buy

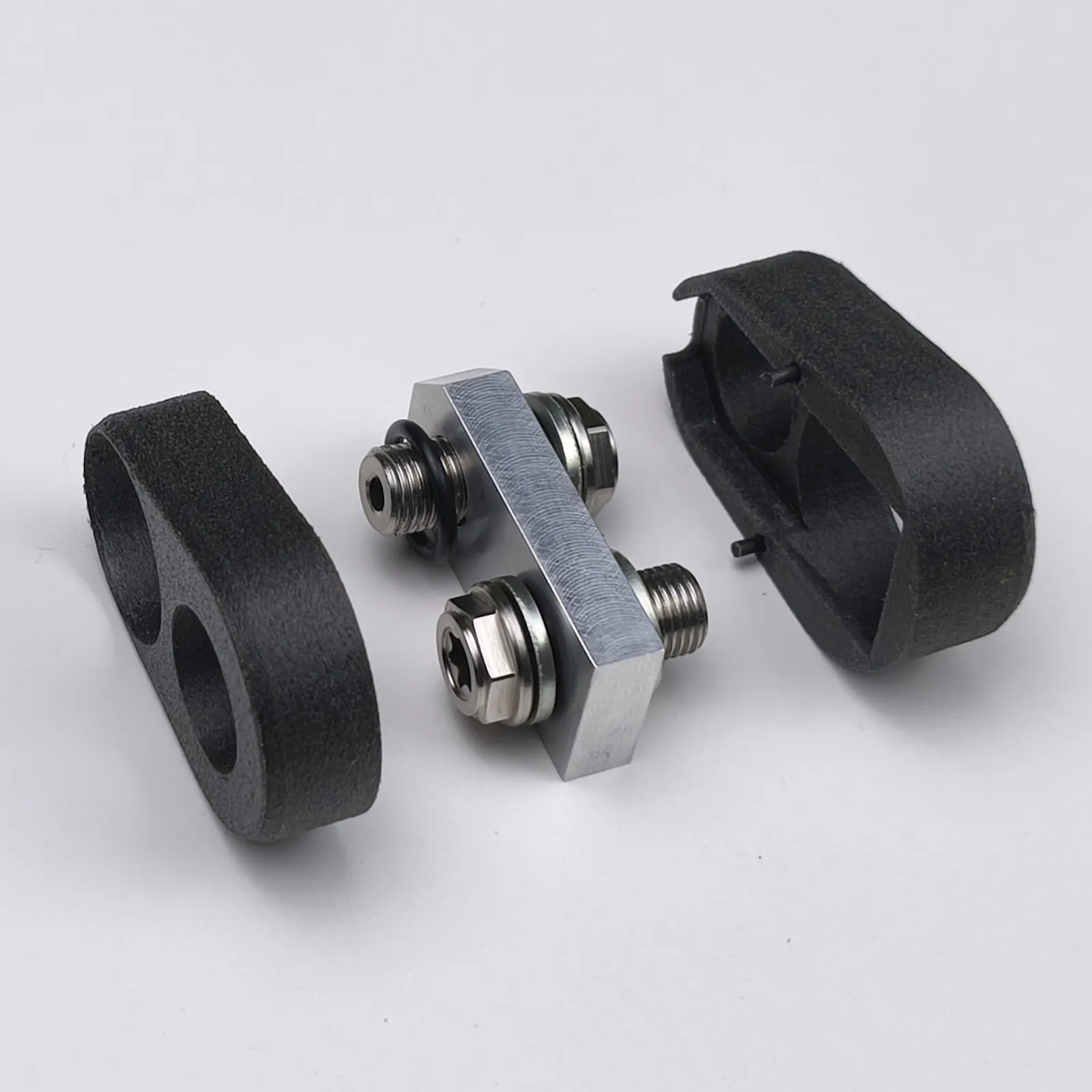

Drop block for PCP/CO2 adapter

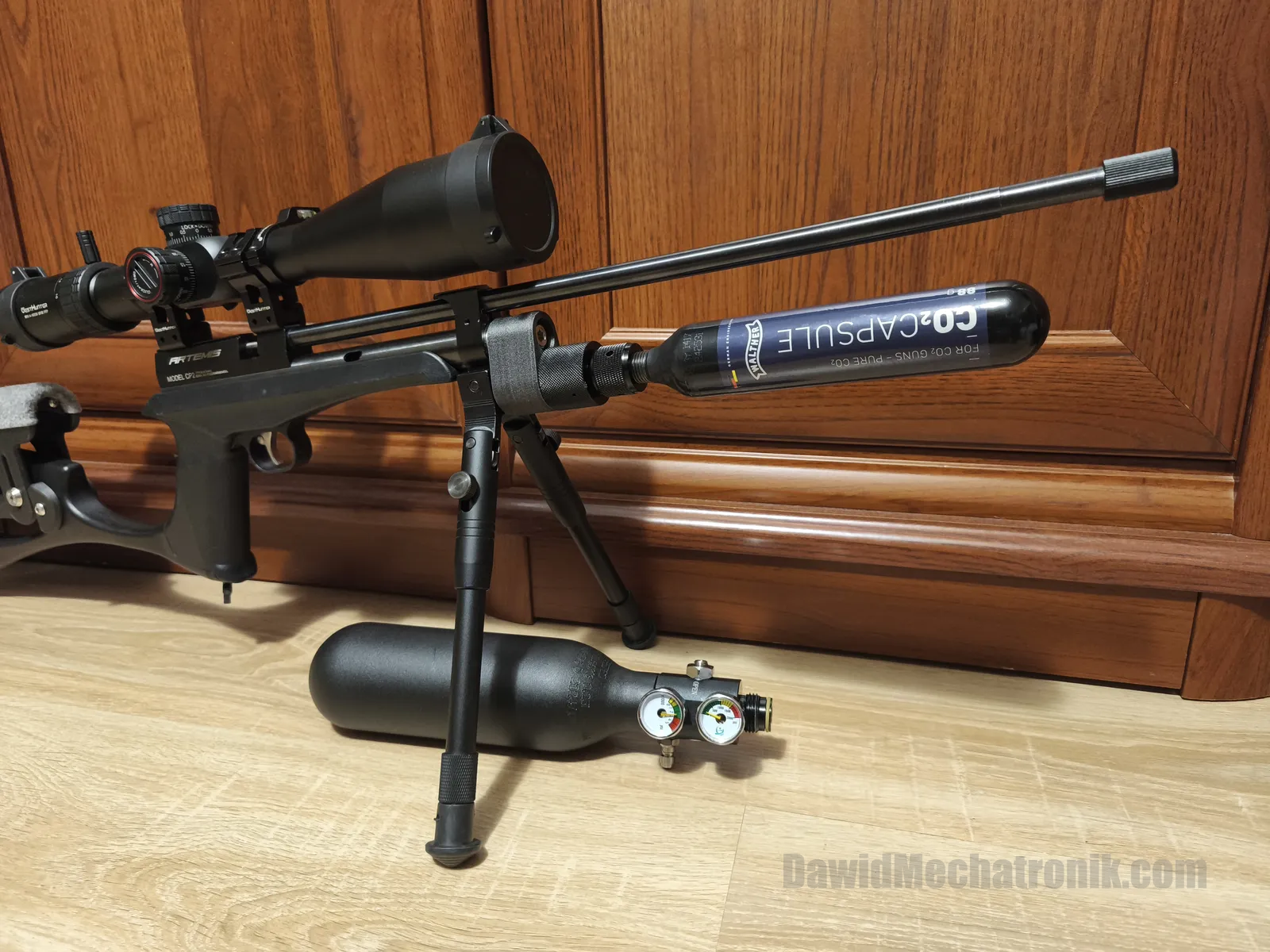

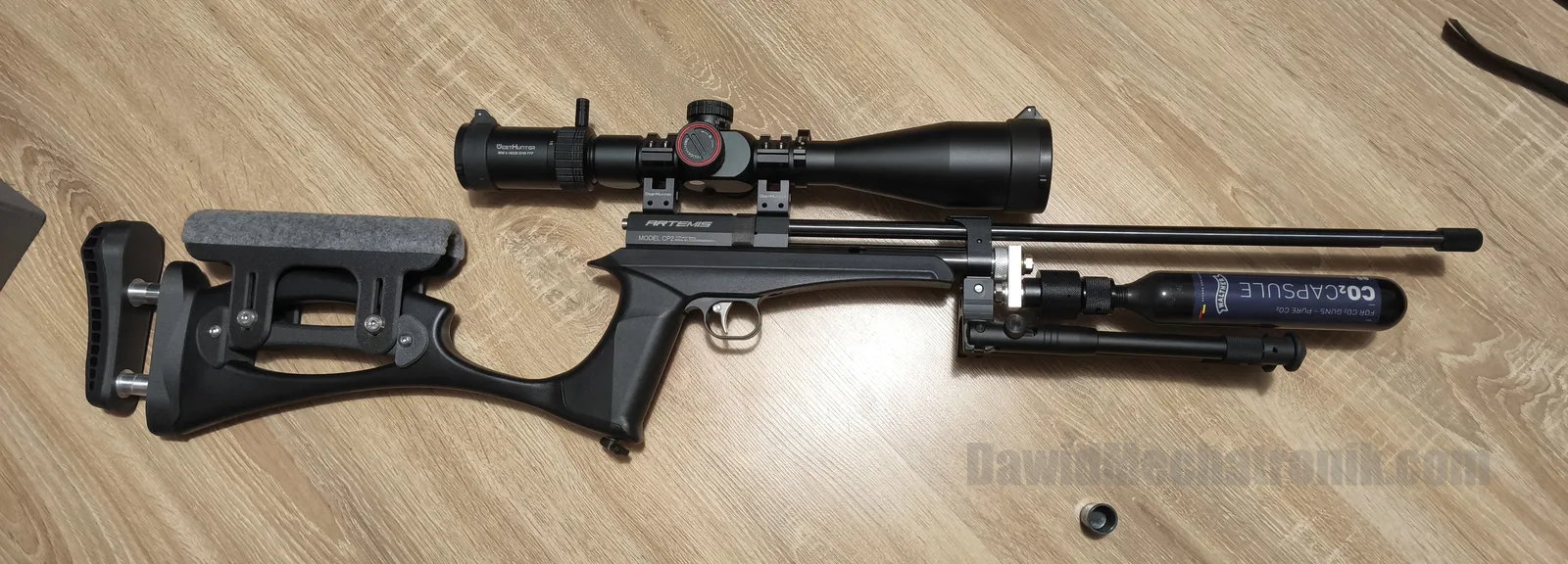

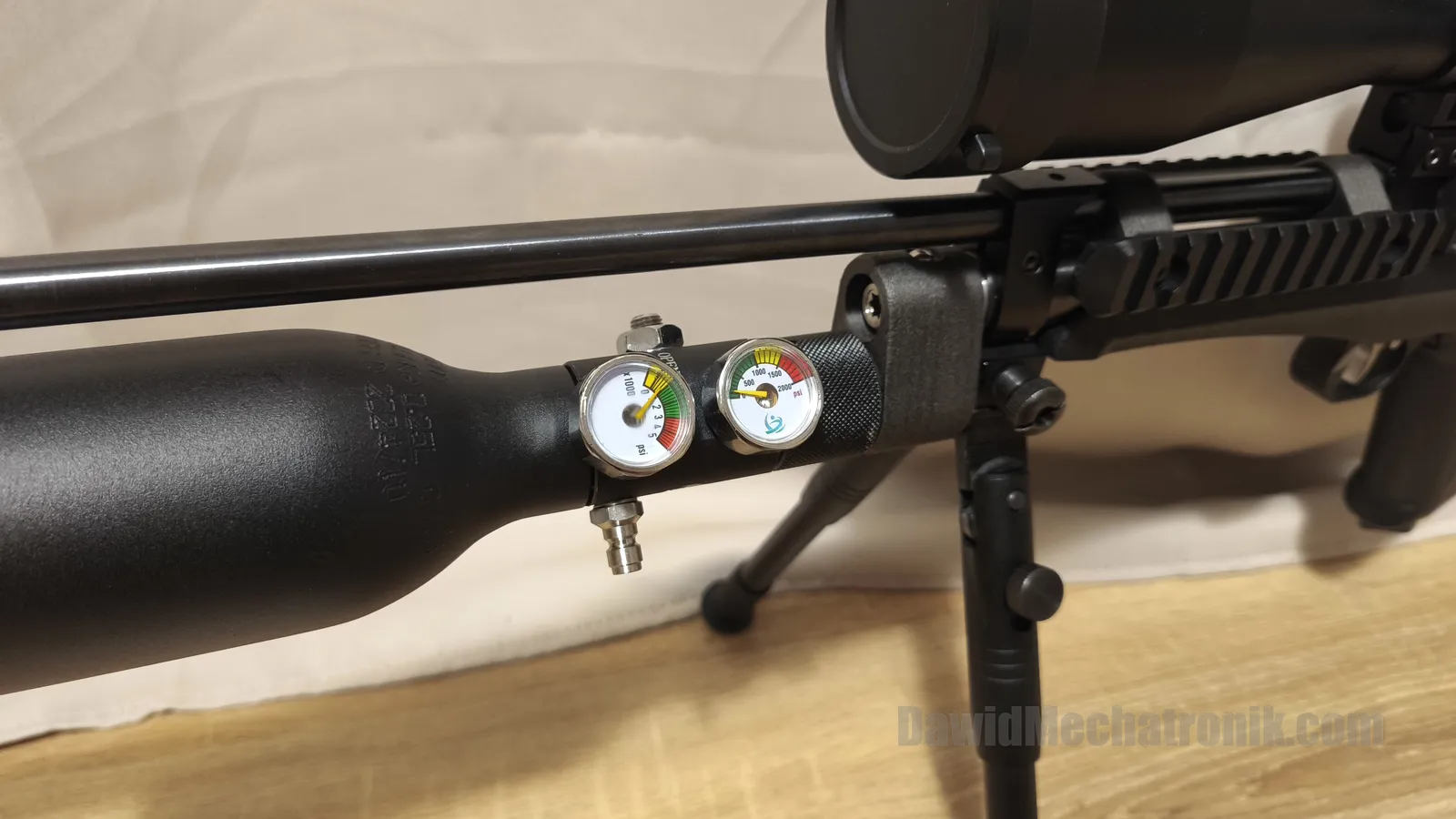

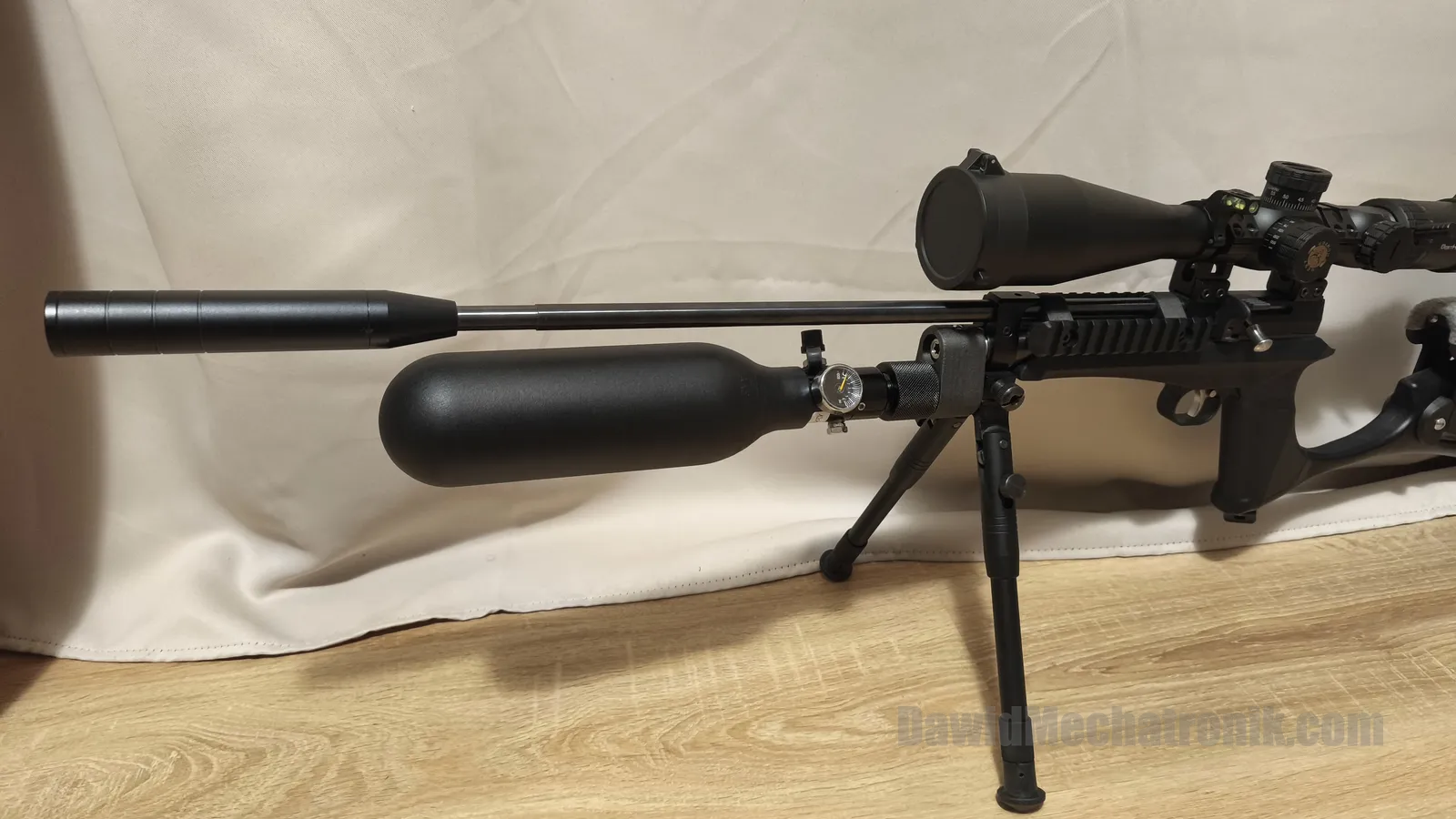

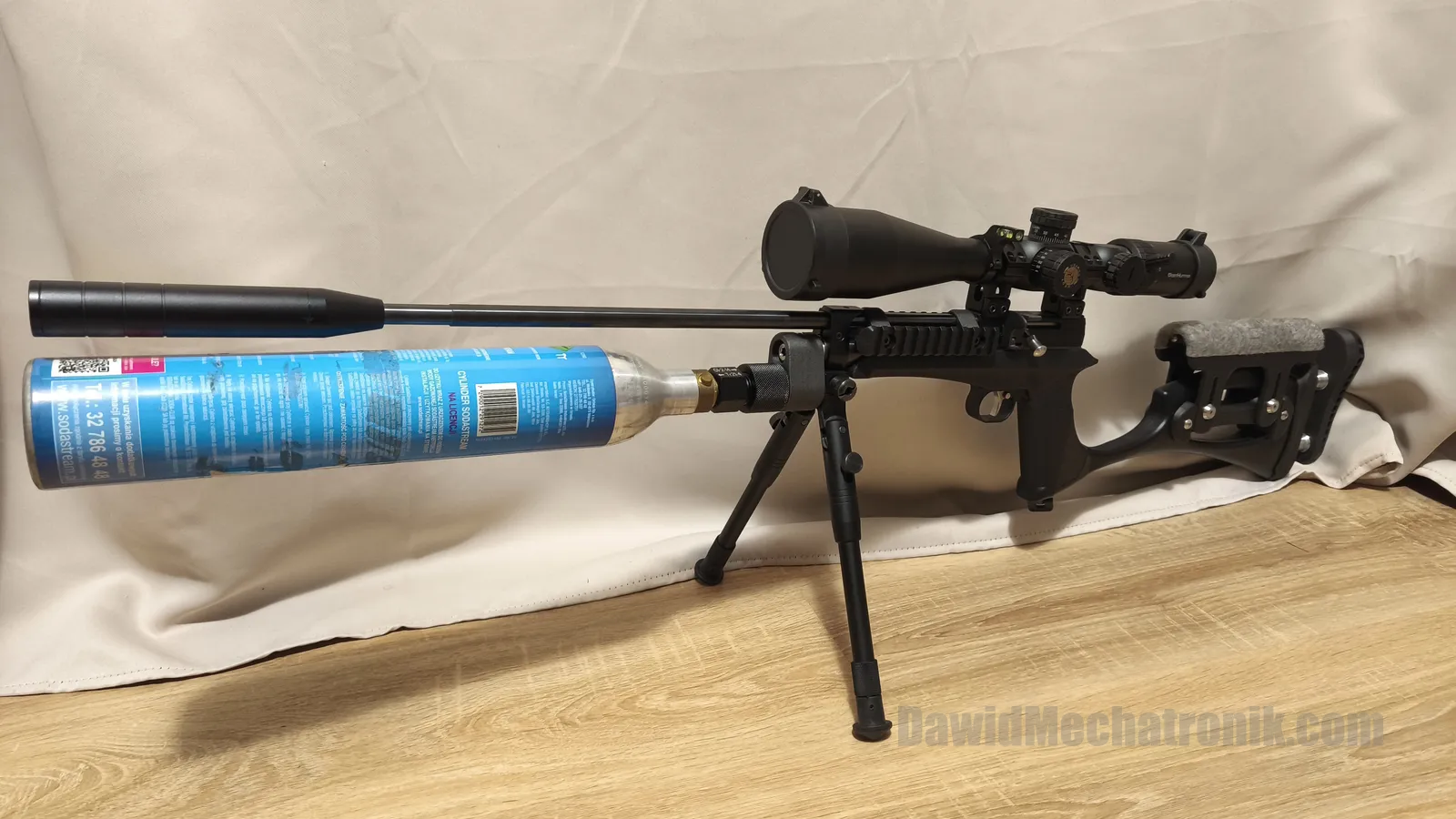

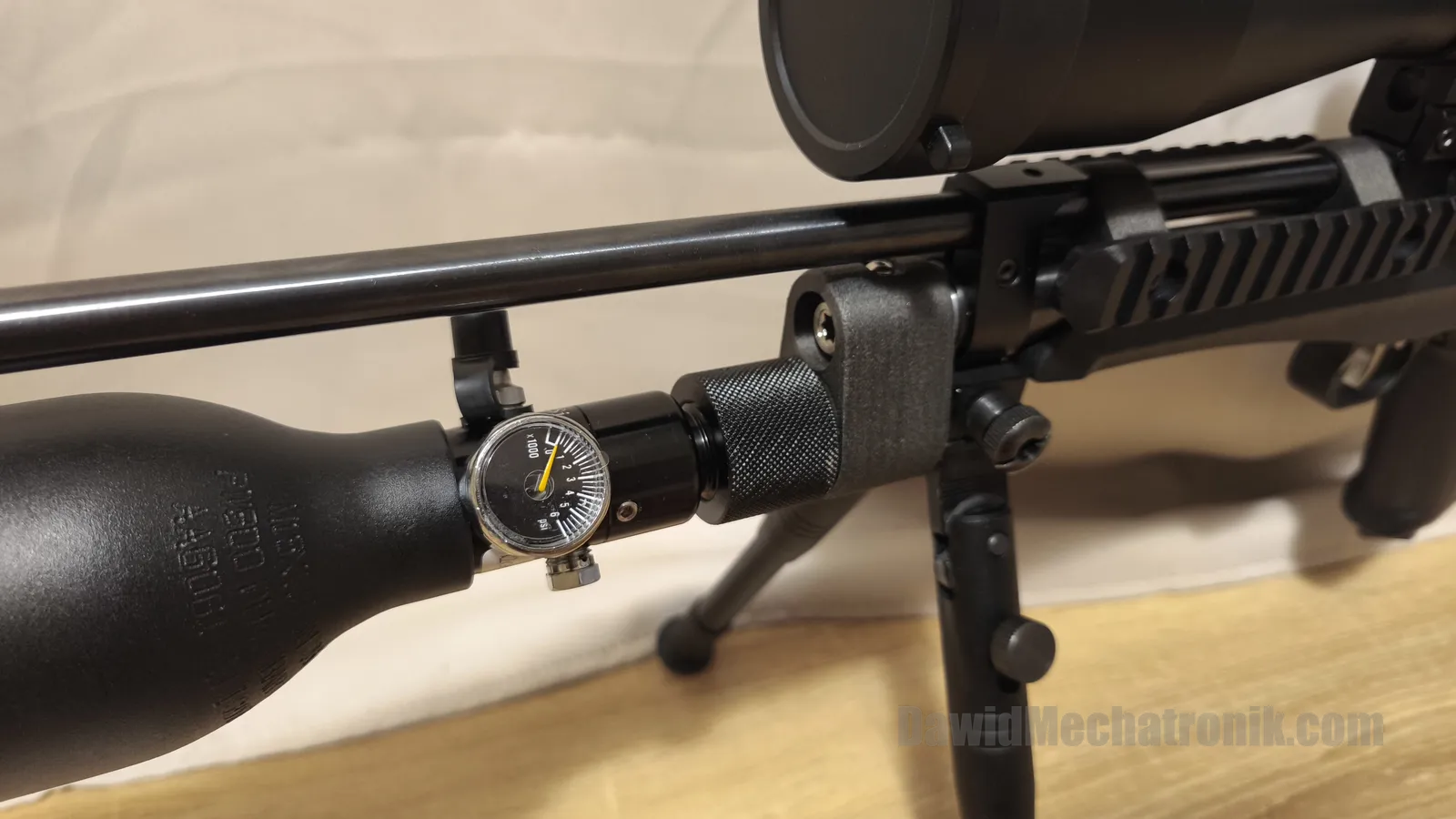

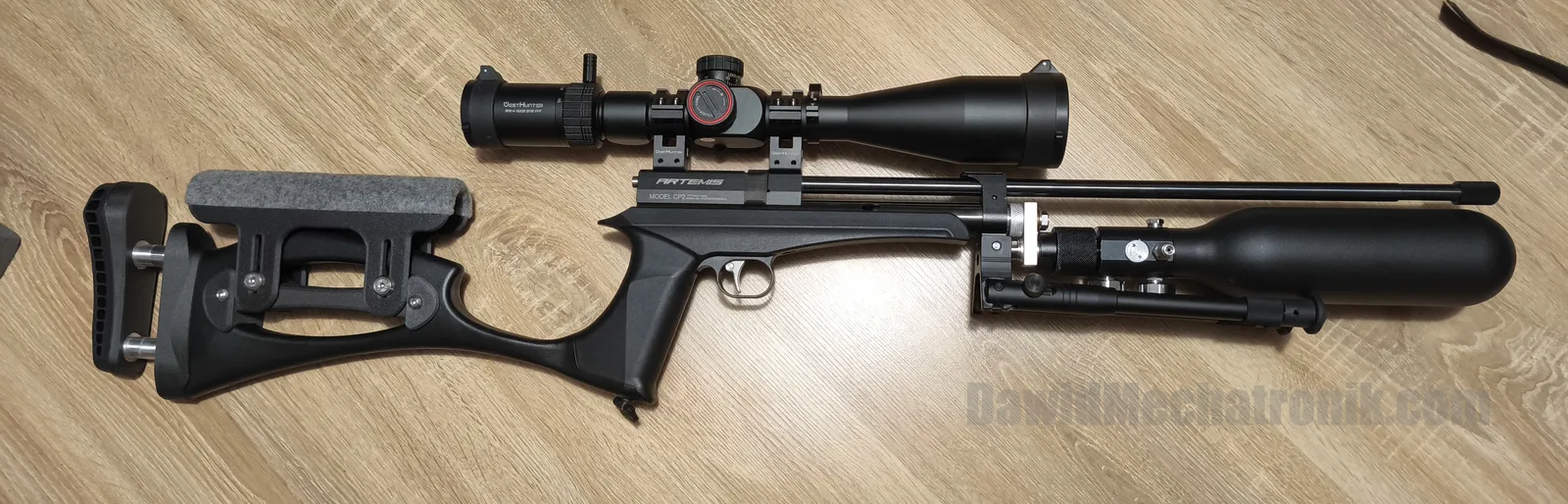

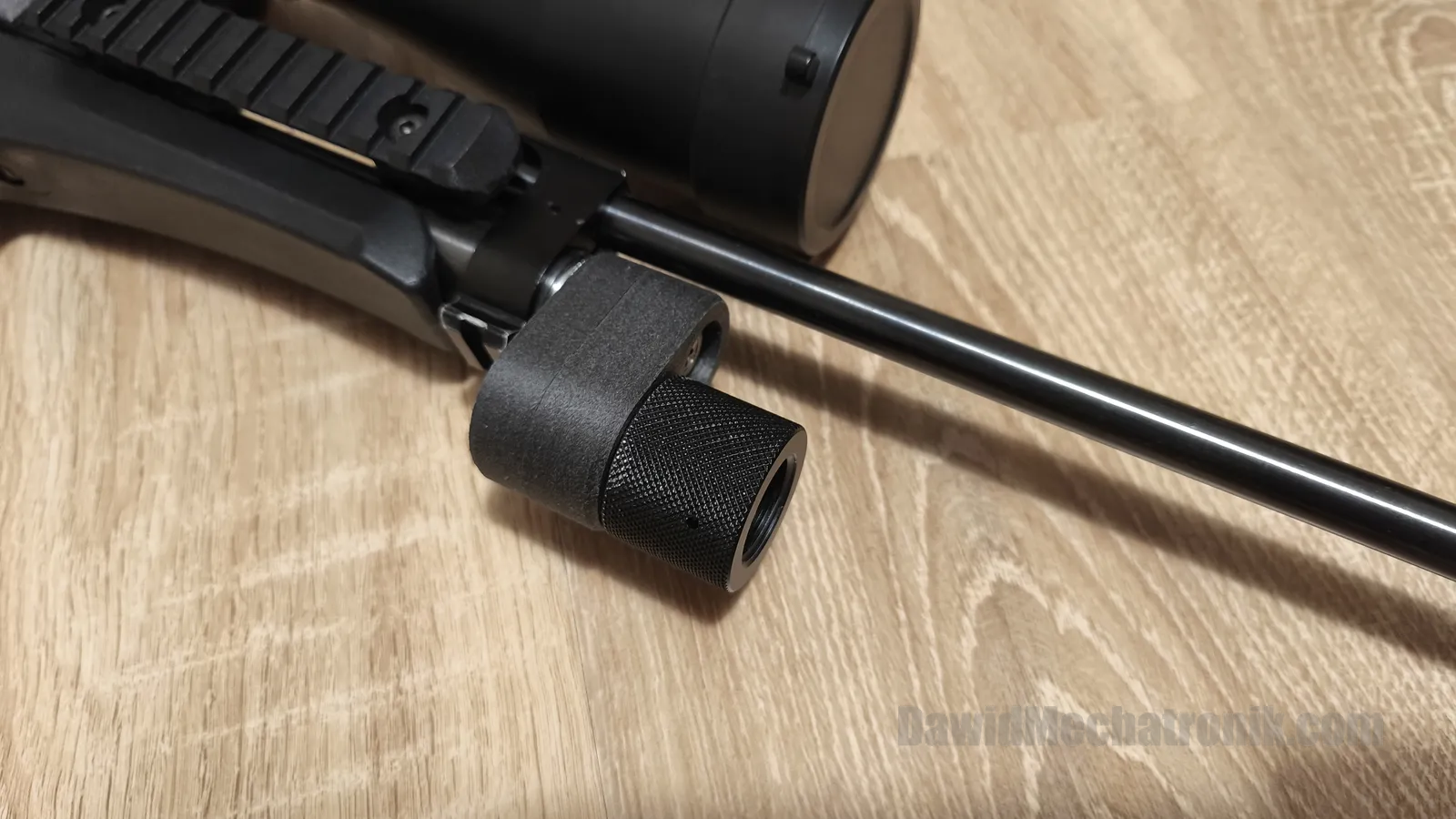

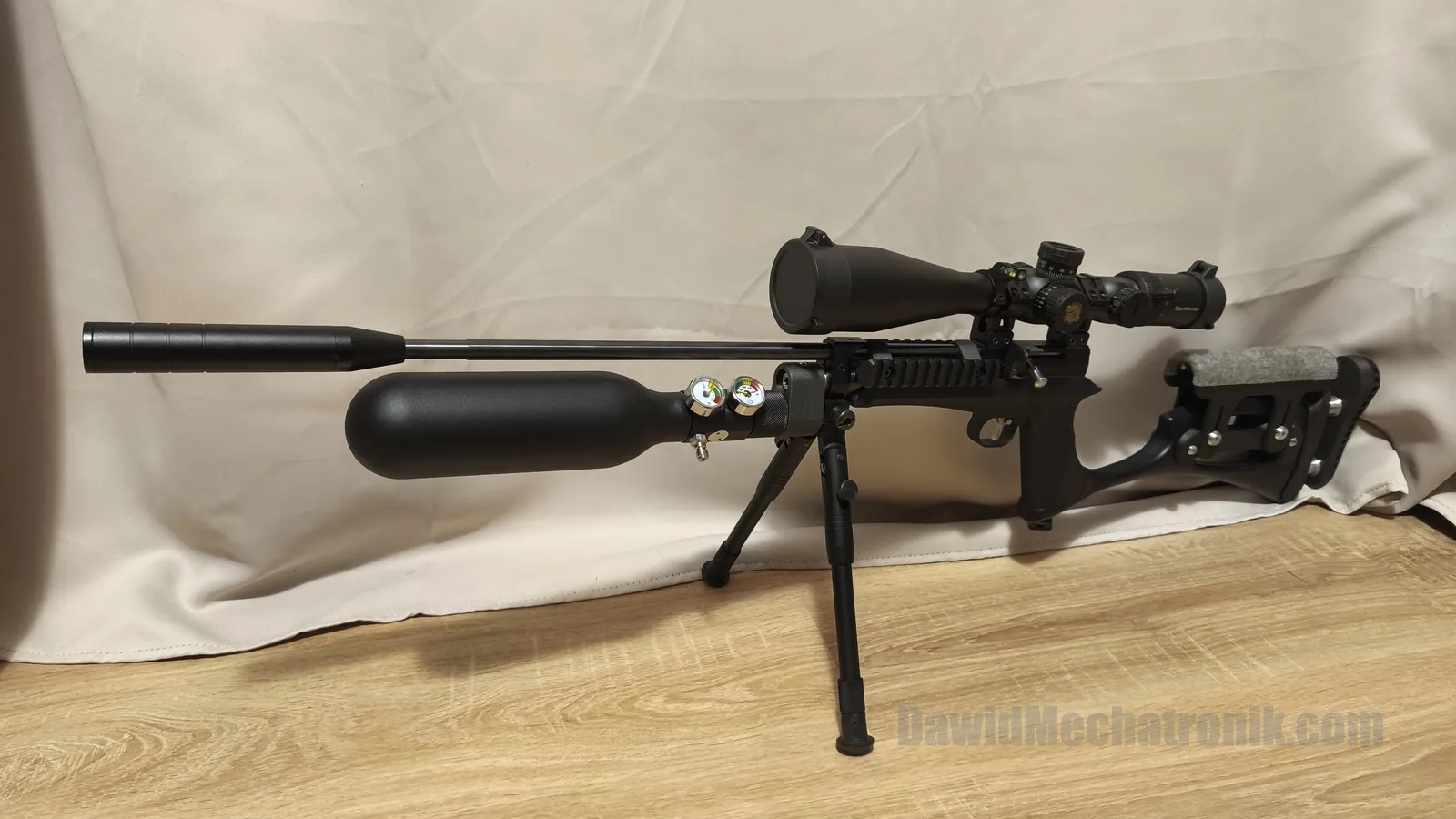

Drop block allows you to mount a regulated air bottle below your air rifle, creating a compact, practical and ergonomic setup. It has been designed and machined by me to work with my PCP/CO2 adapter.

Preparation

Before you begin, make sure you have all the required parts:
-PCP/CO2 adapter
-Drop block
-Banjo bolts (M10x1.0 hexagon)
-Paintball adapter with G1/2-14 thread

Assembly

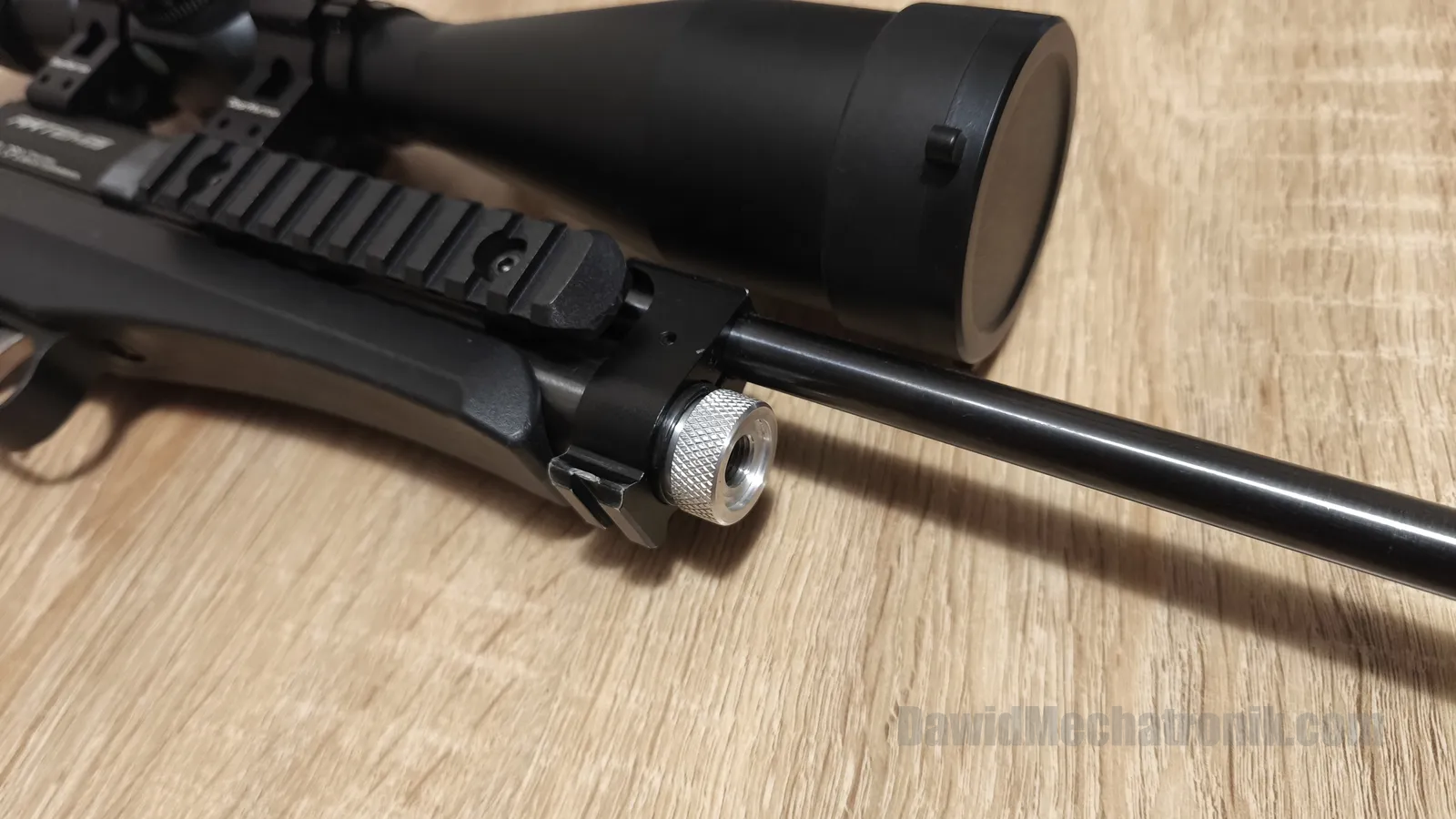

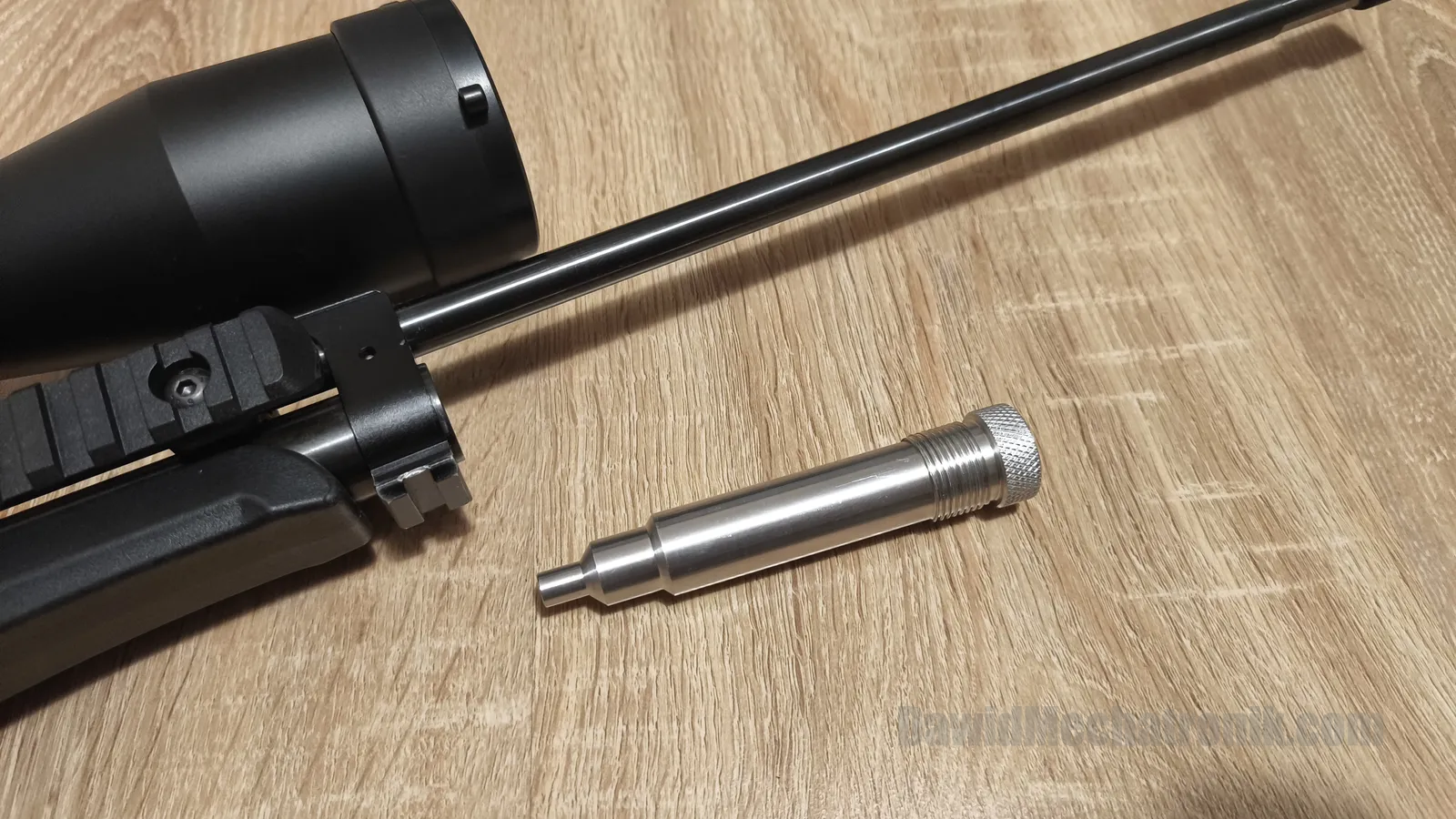

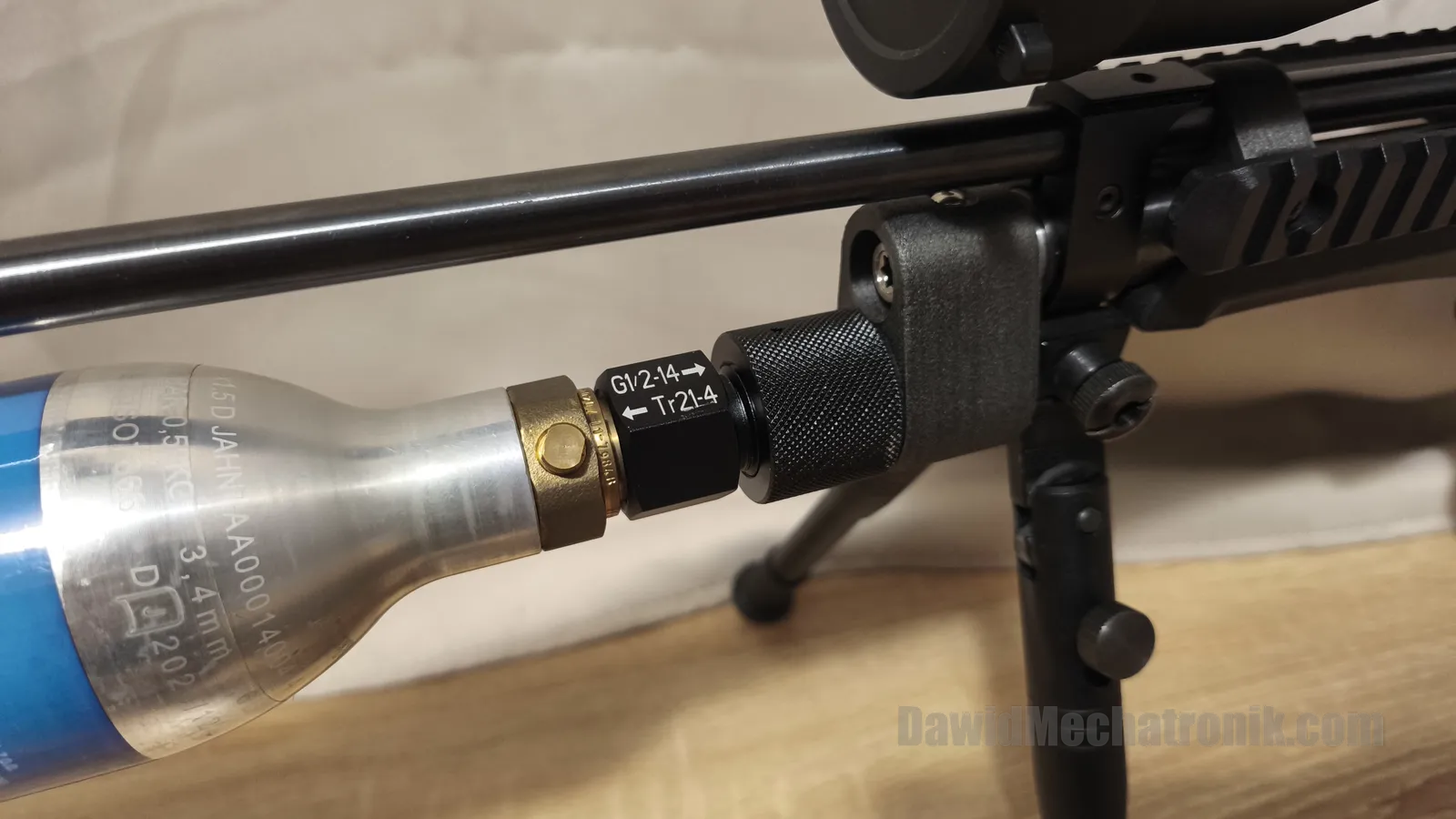

Install the PCP/CO2 adapter with the M10x1 thread. A detailed installation guide is available here

Before proceeding, make sure the sealing washers are installed in the correct orientation.

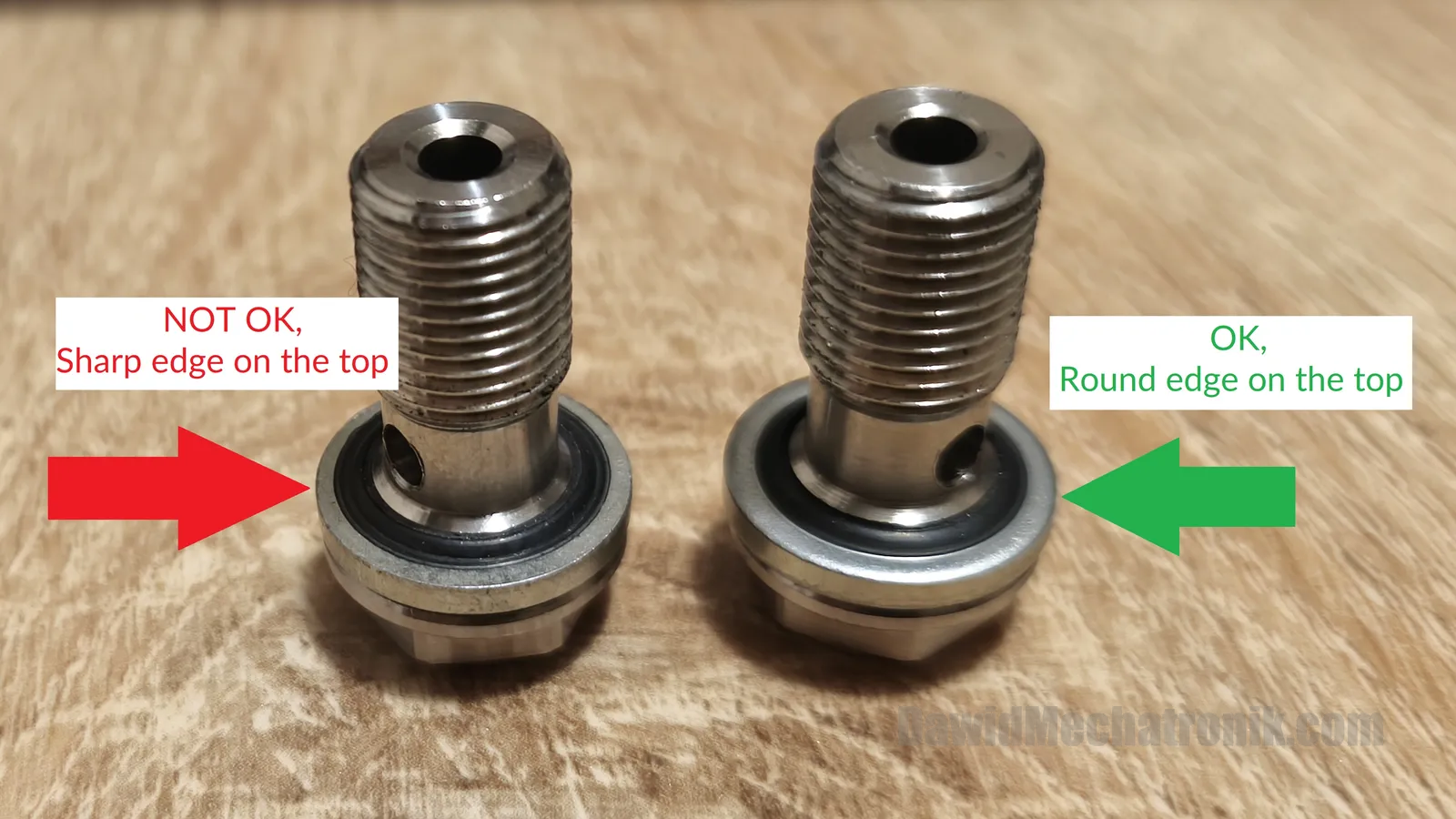

Metal/rubber bonded sealing washers (like most washers) have one sharp side and one rounded side. Install them with the rounded side facing the Drop Block plate to avoid scratching the aluminum surface.

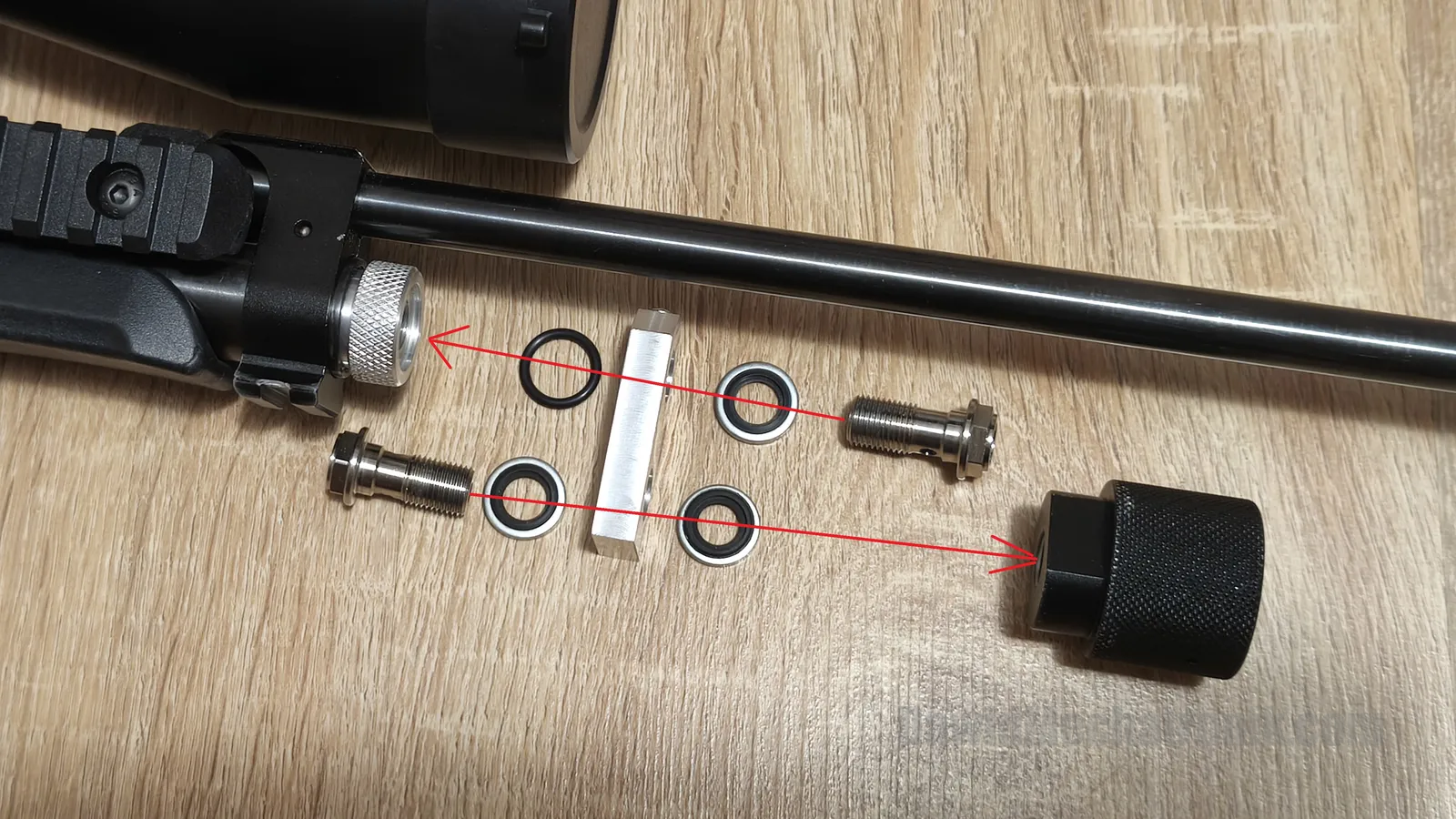

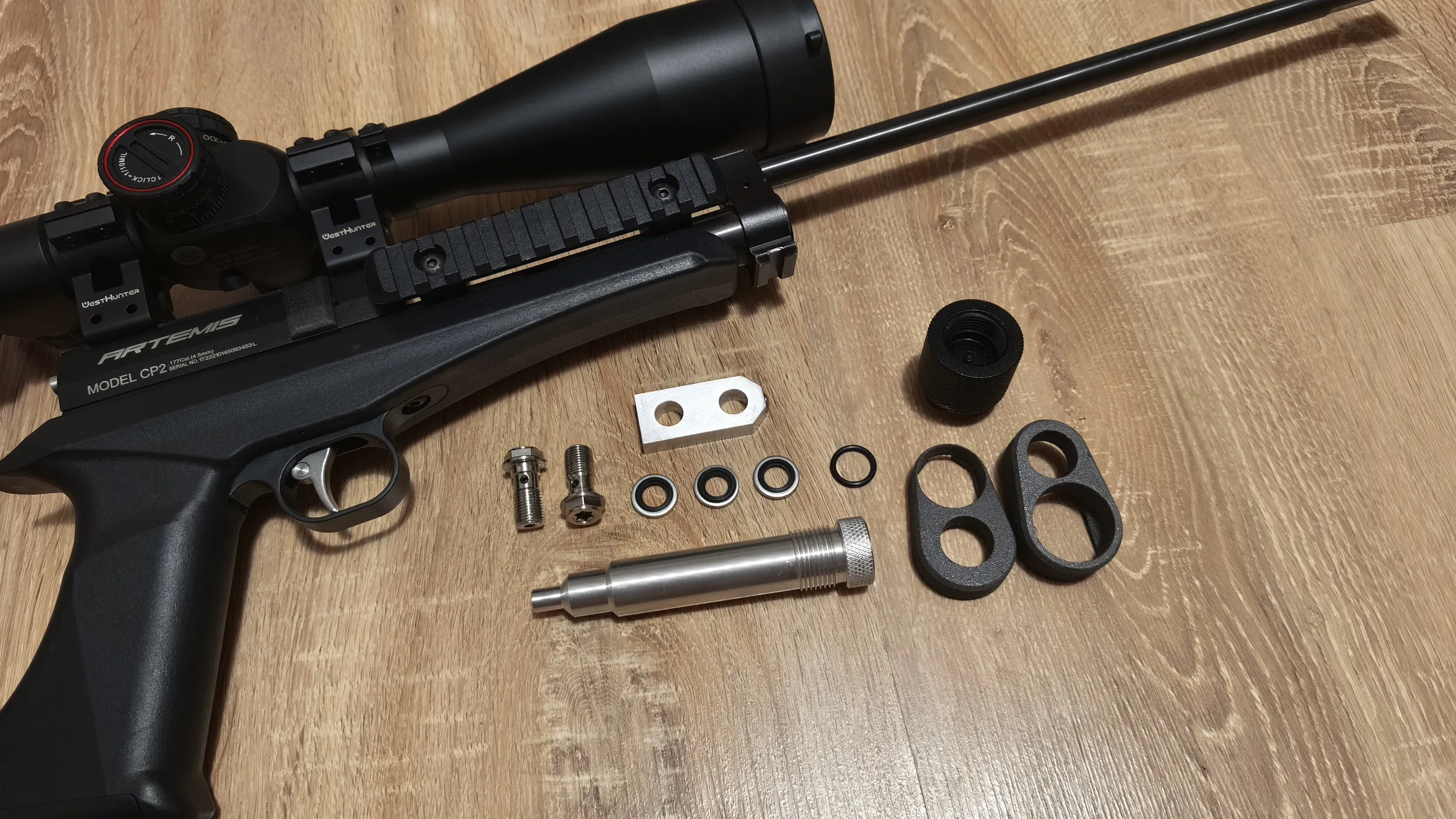

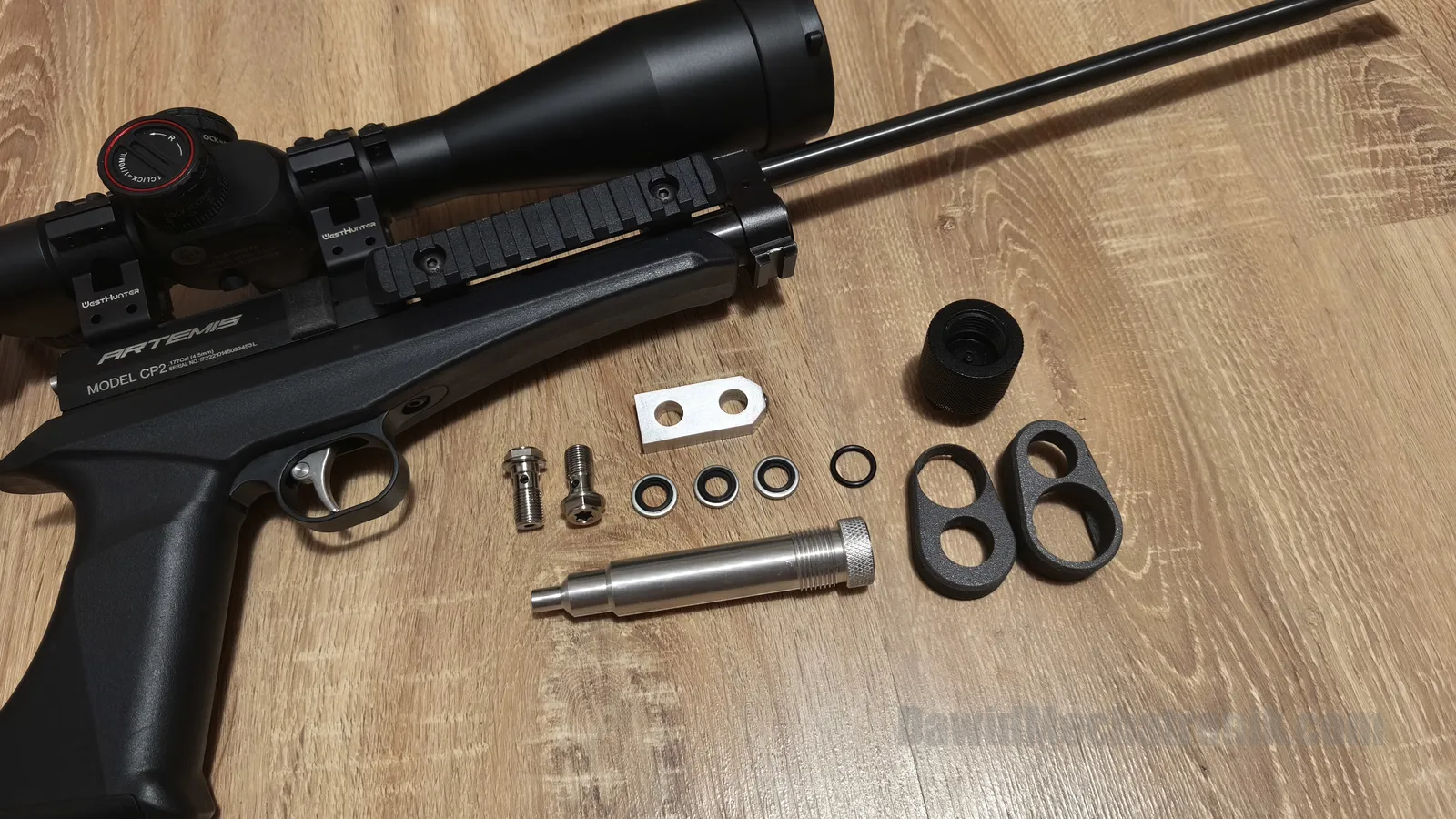

The illustration below shows the correct order of all components during assembly.

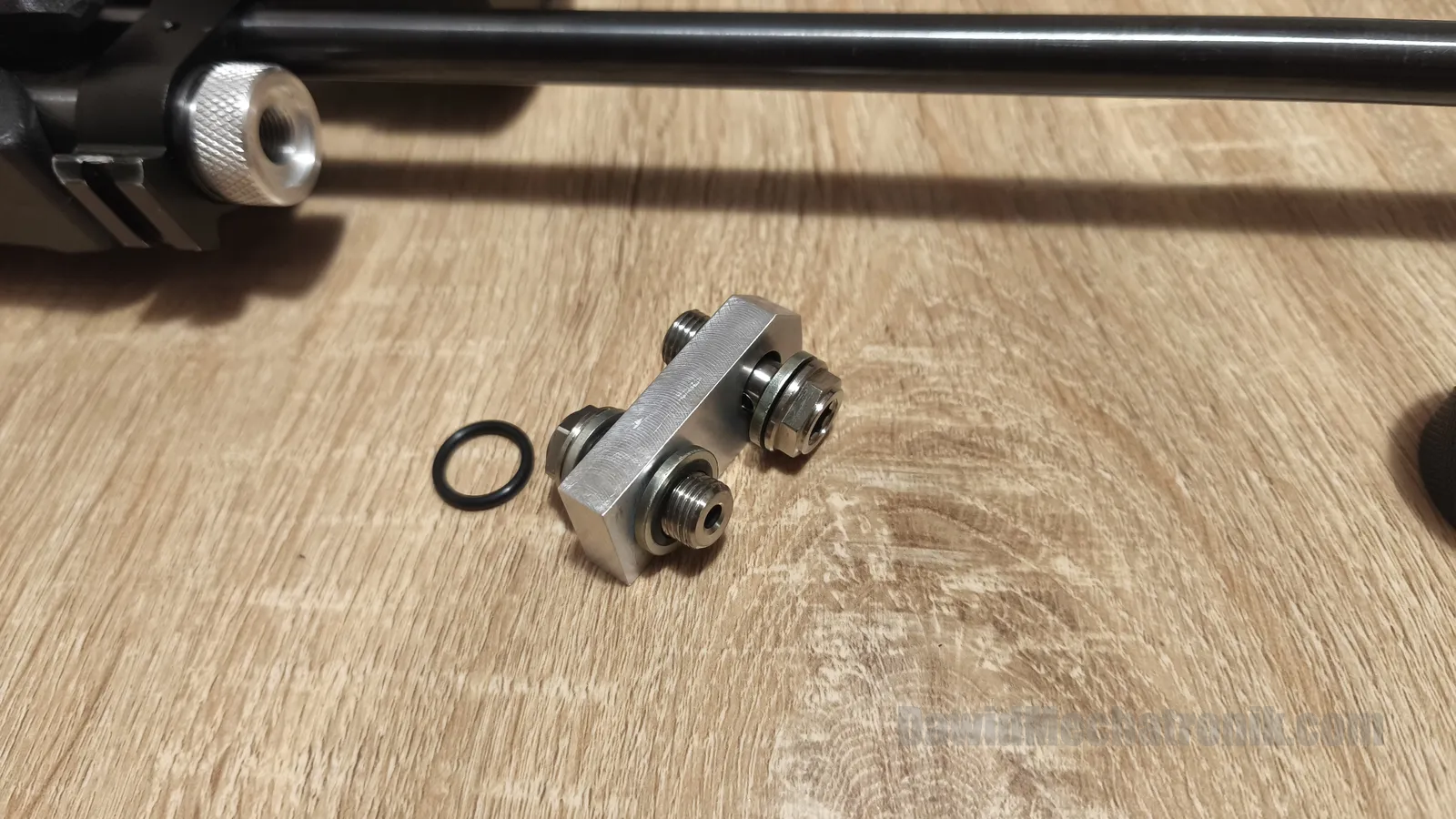

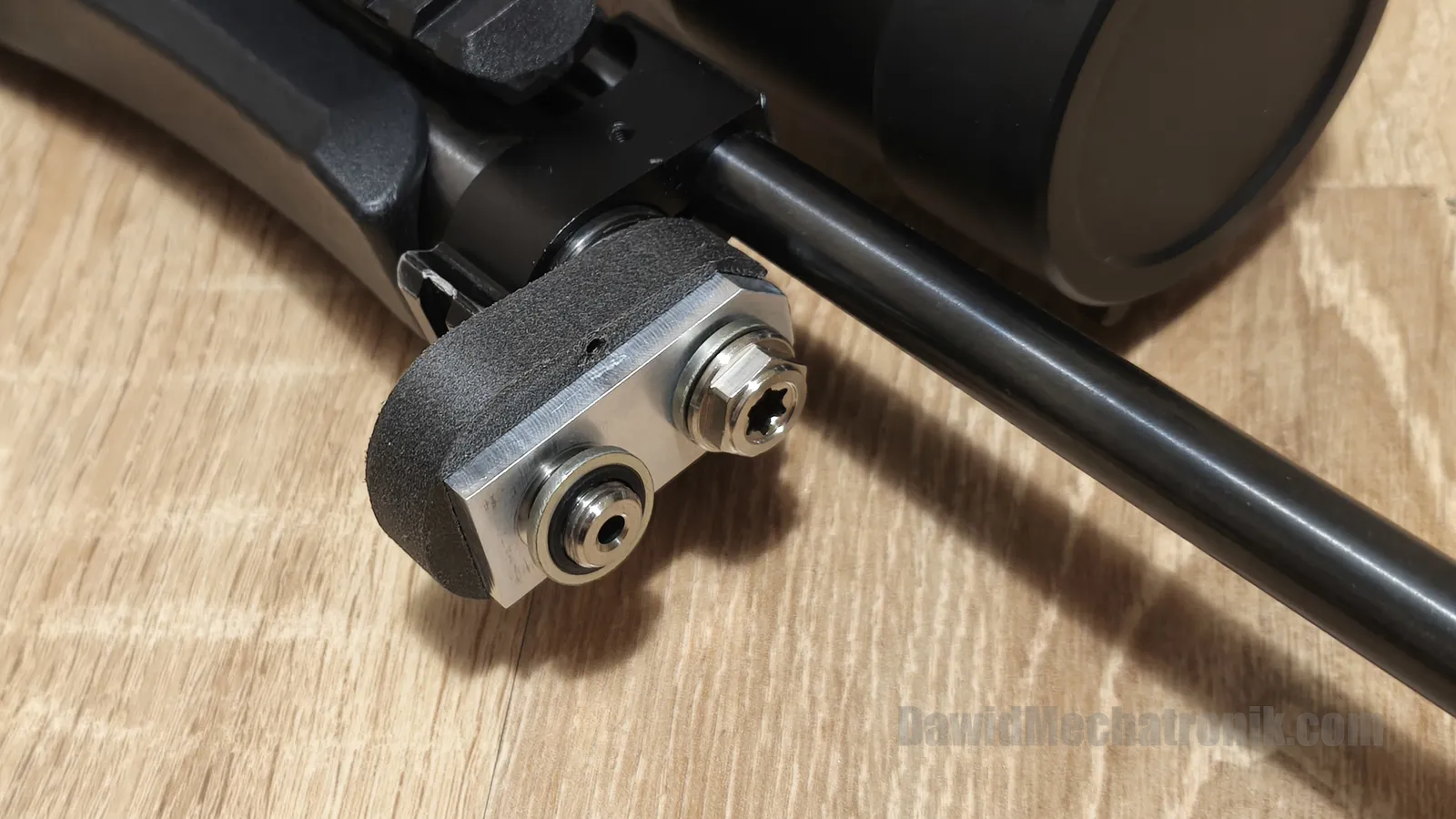

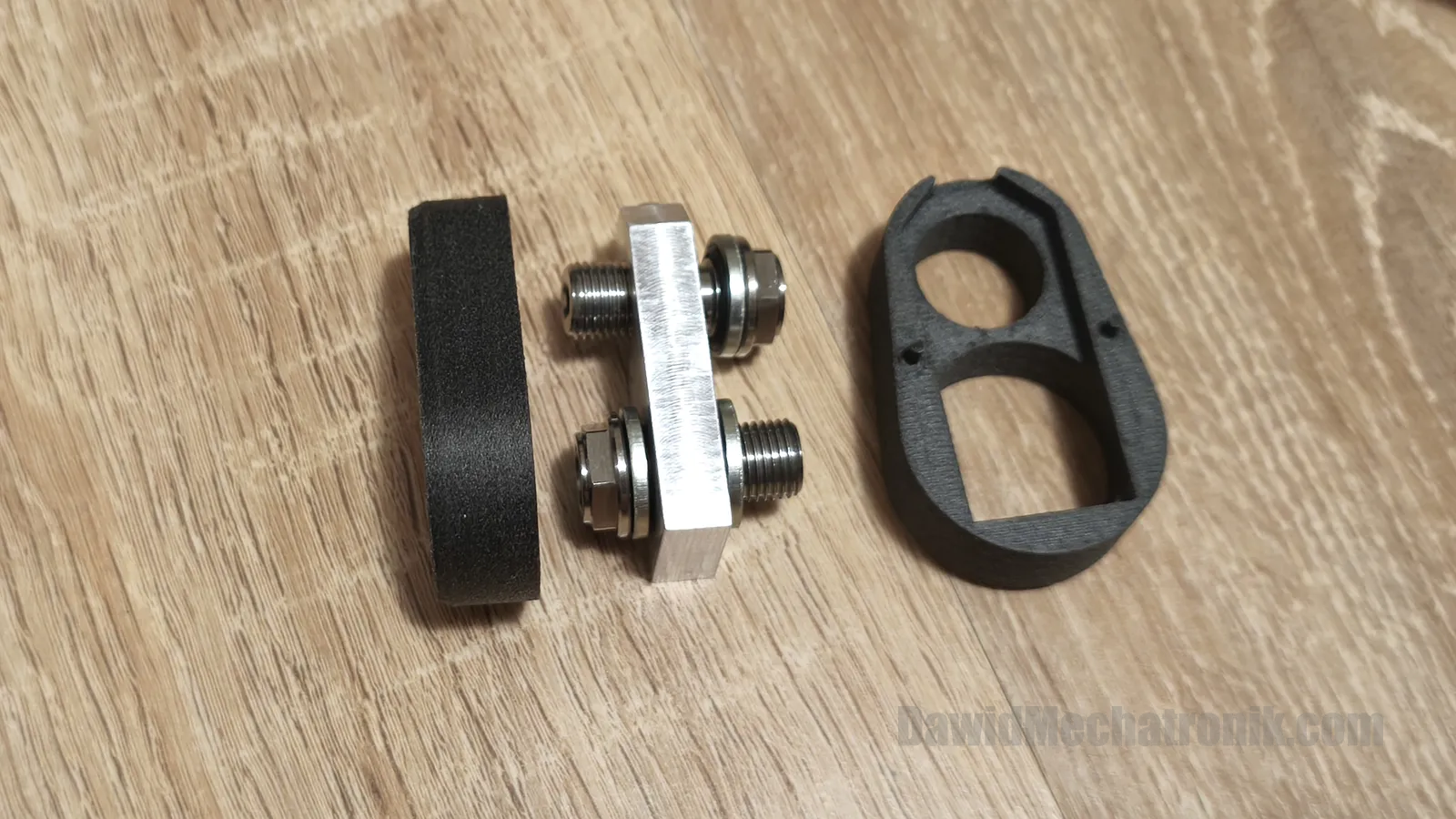

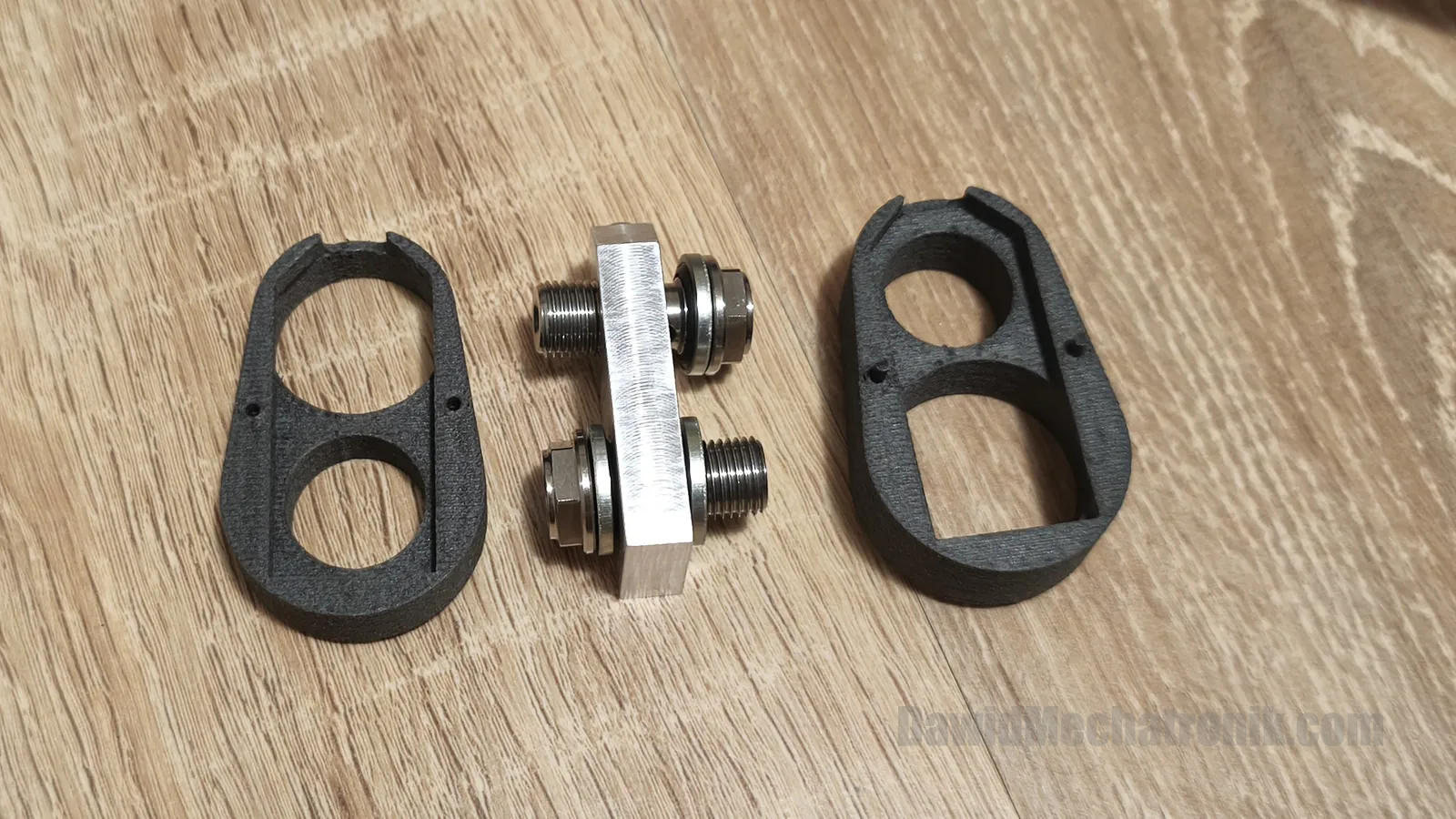

First assemble the Drop Block plate, banjo bolts, and sealing washers.

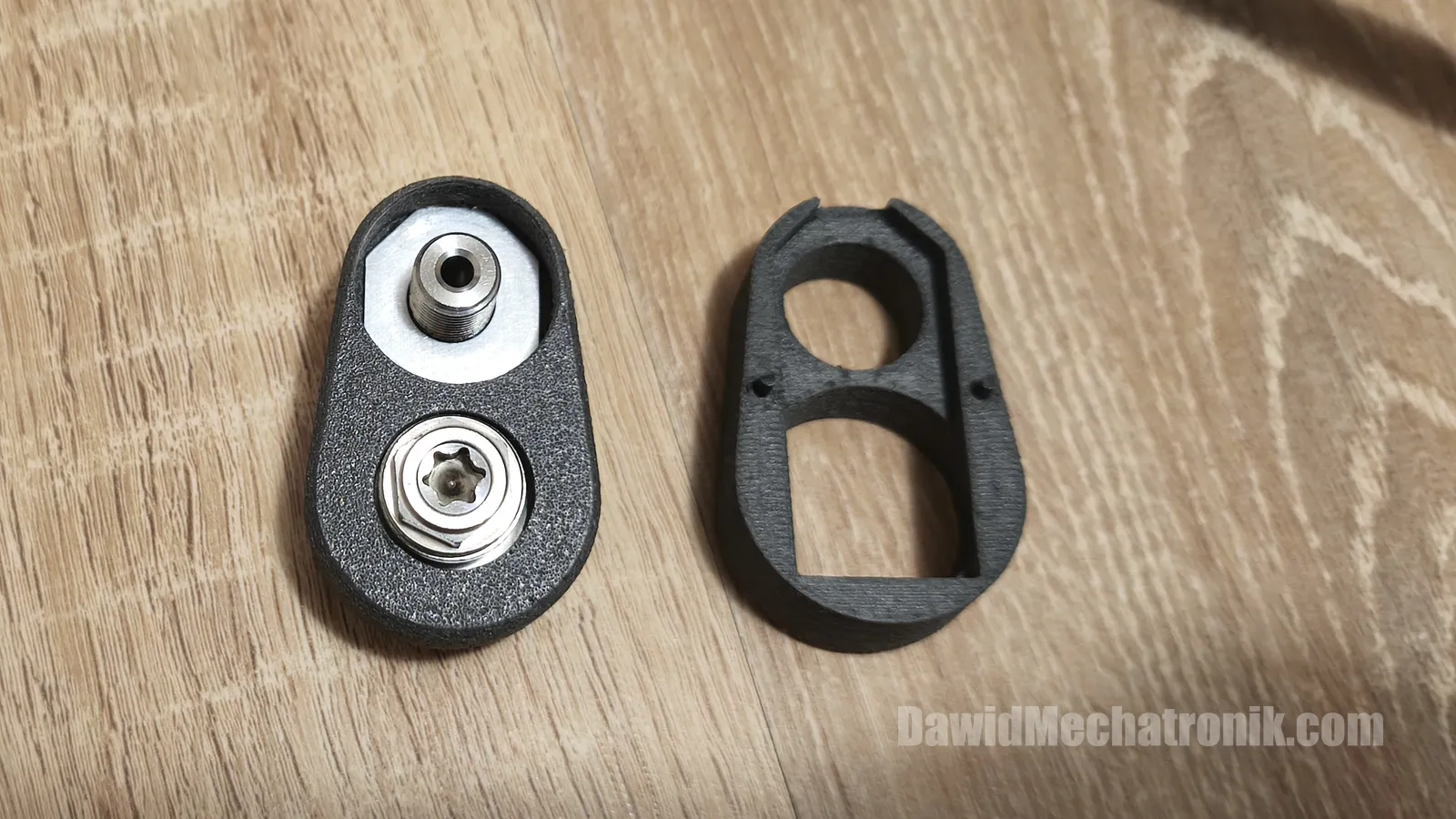

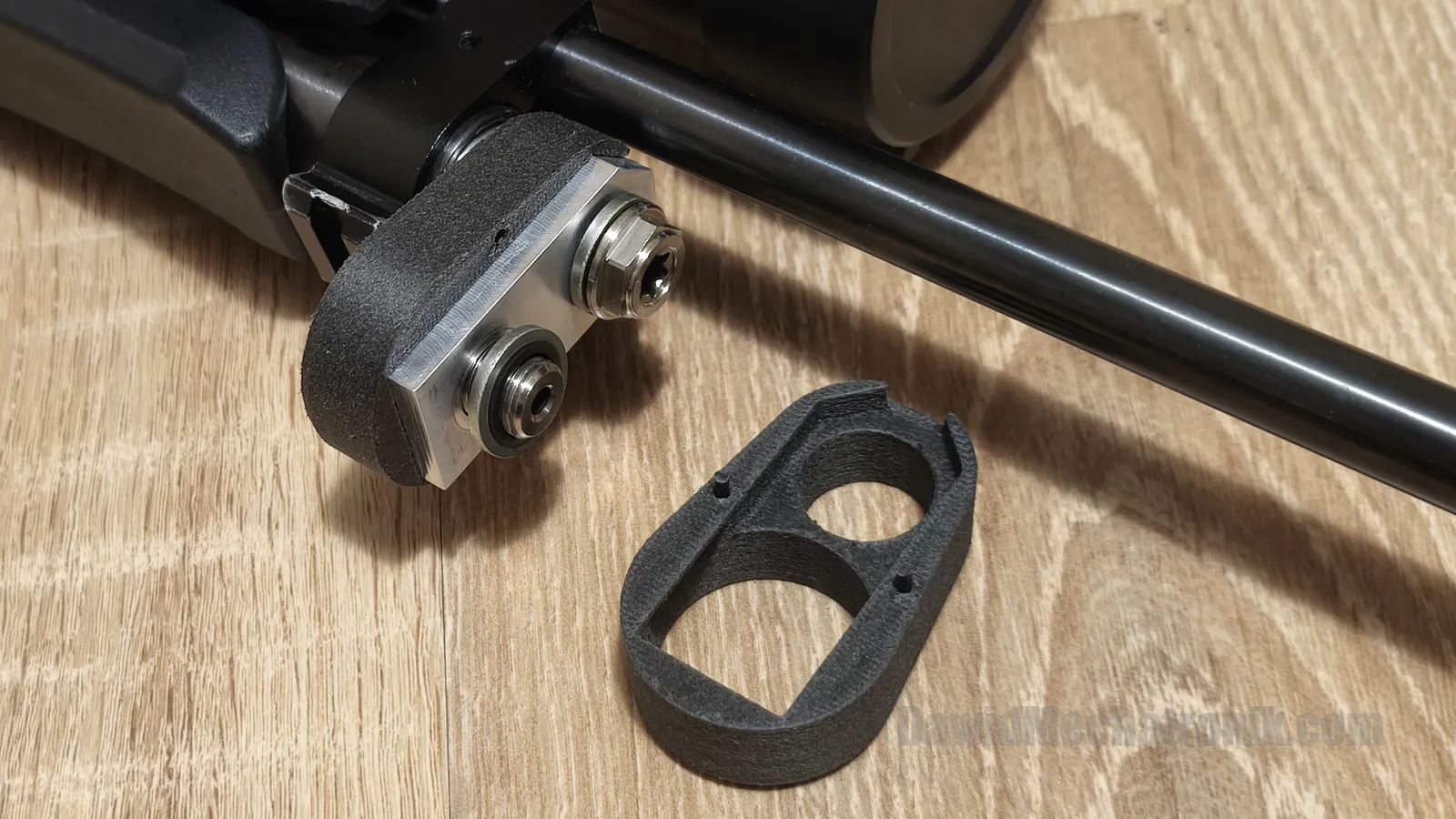

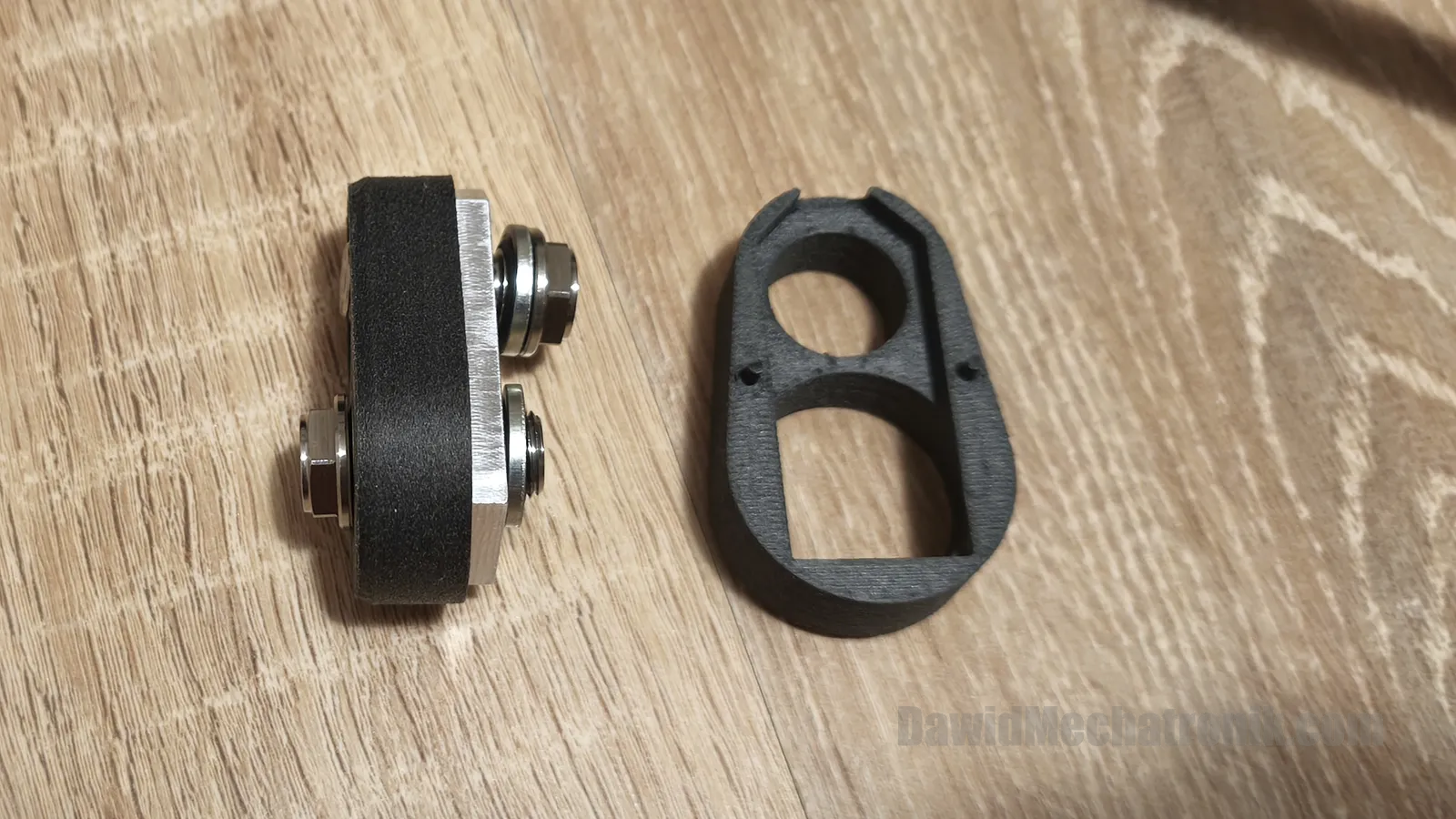

Next, install the first housing half (the left half shown in the photo).

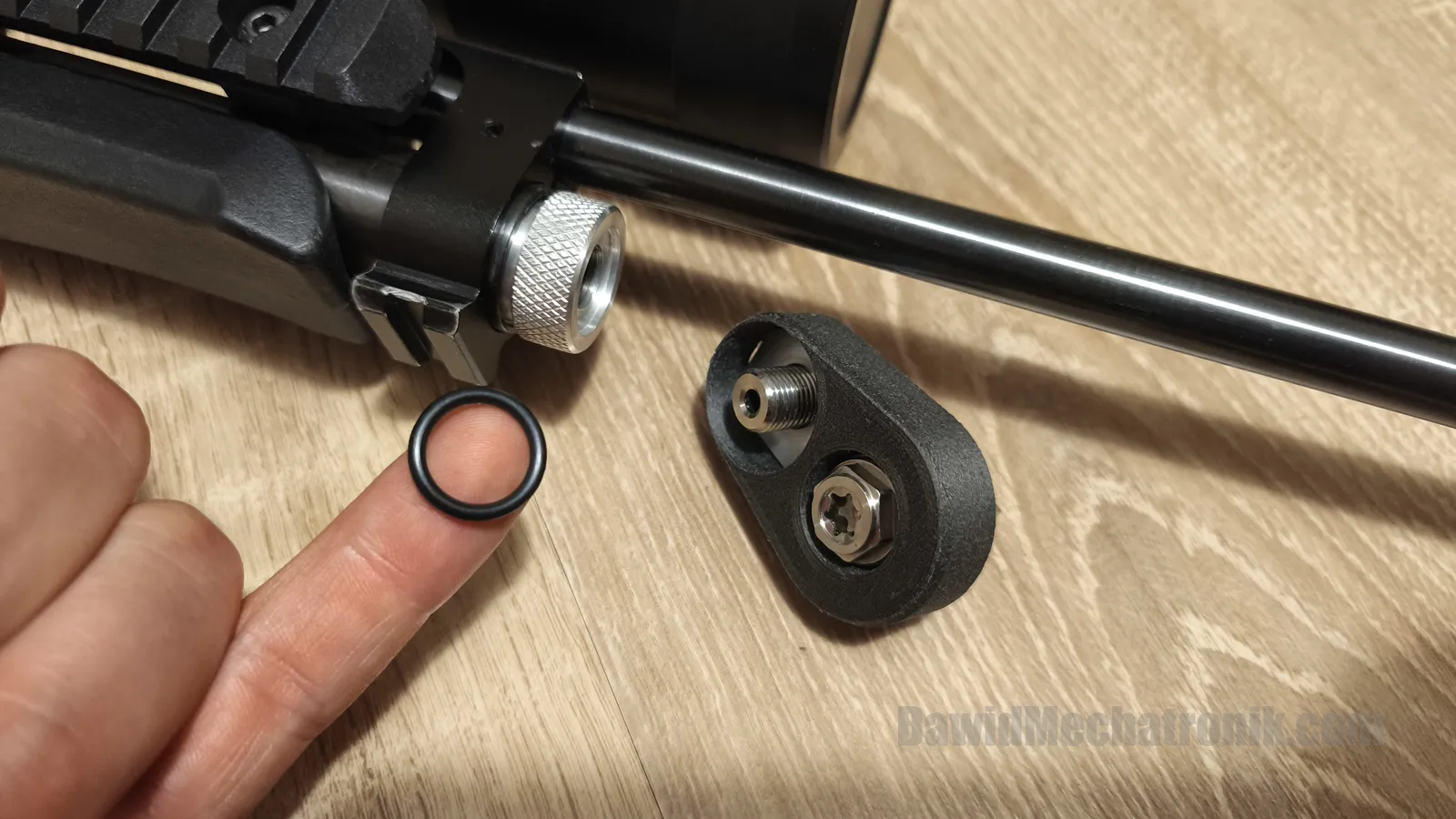

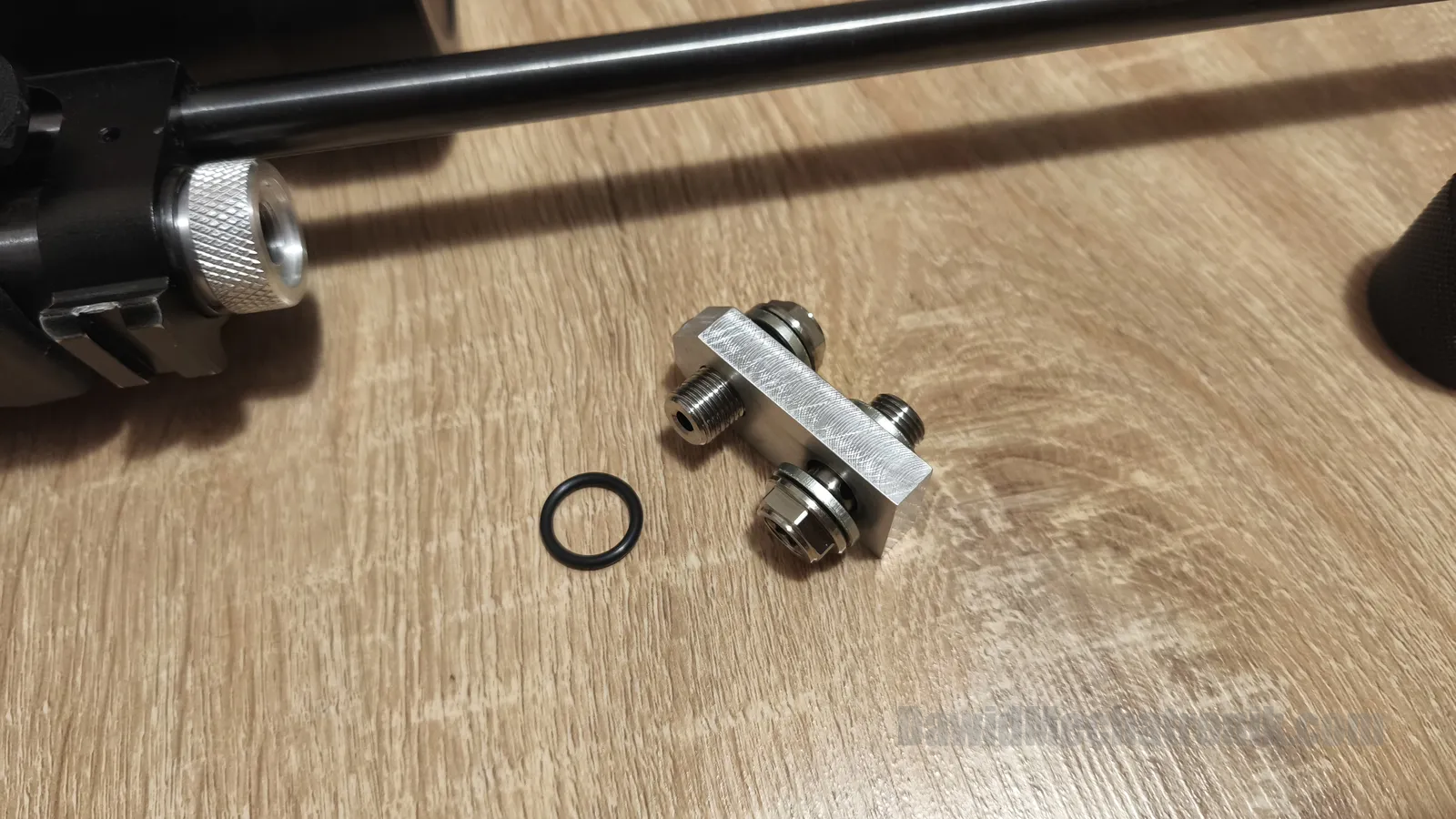

Install the O-ring onto the PCP/CO2 adapter.

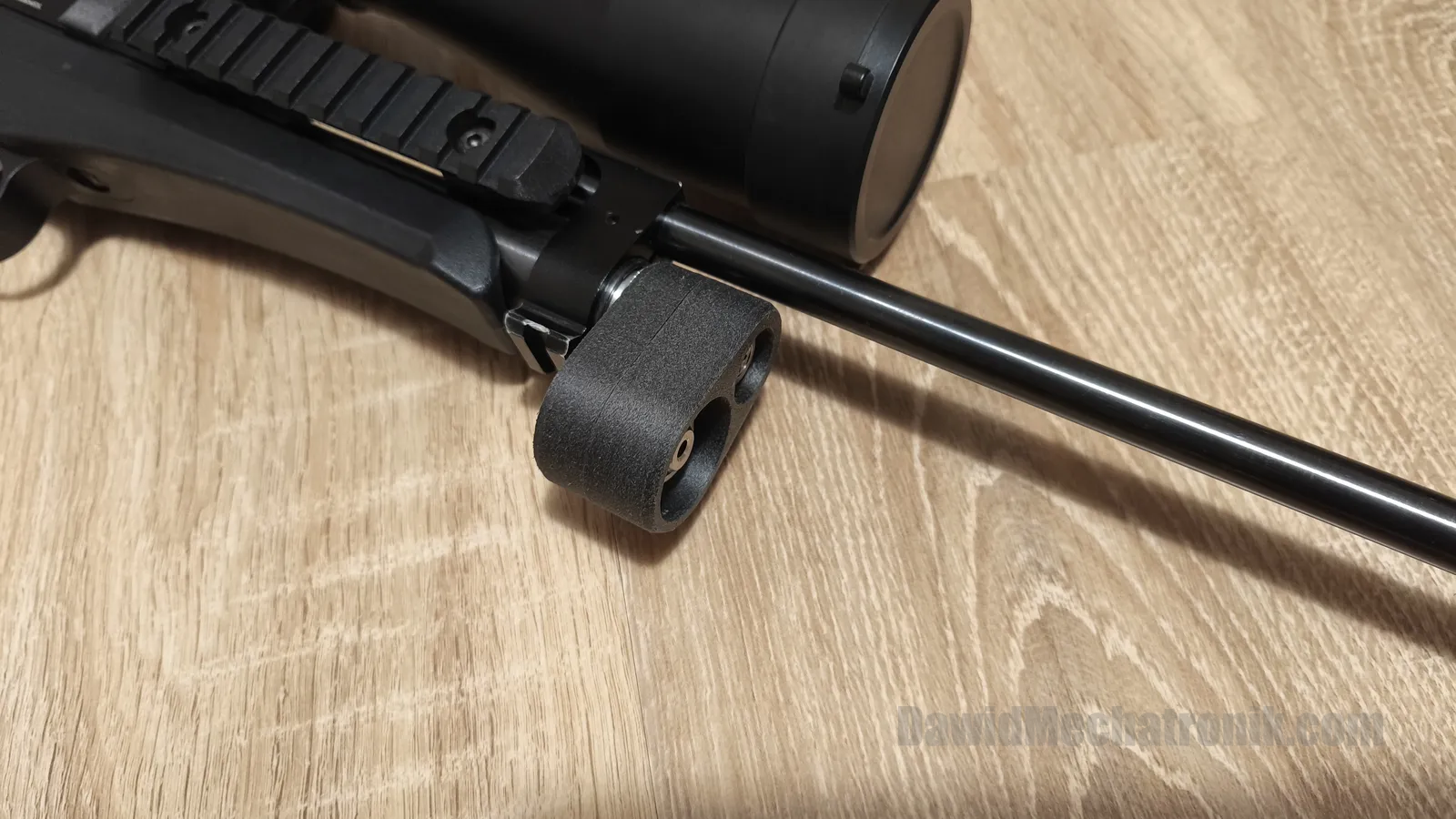

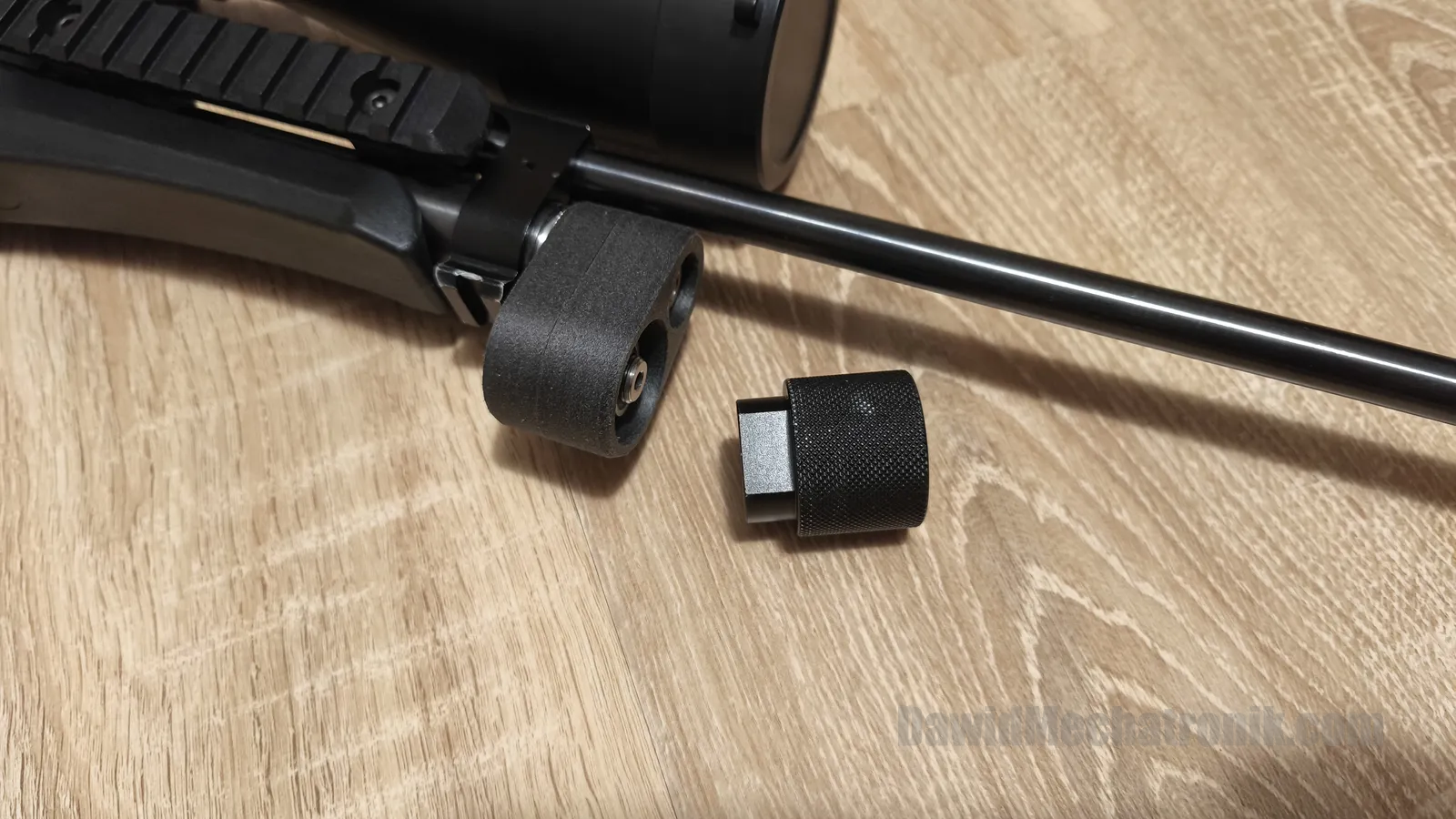

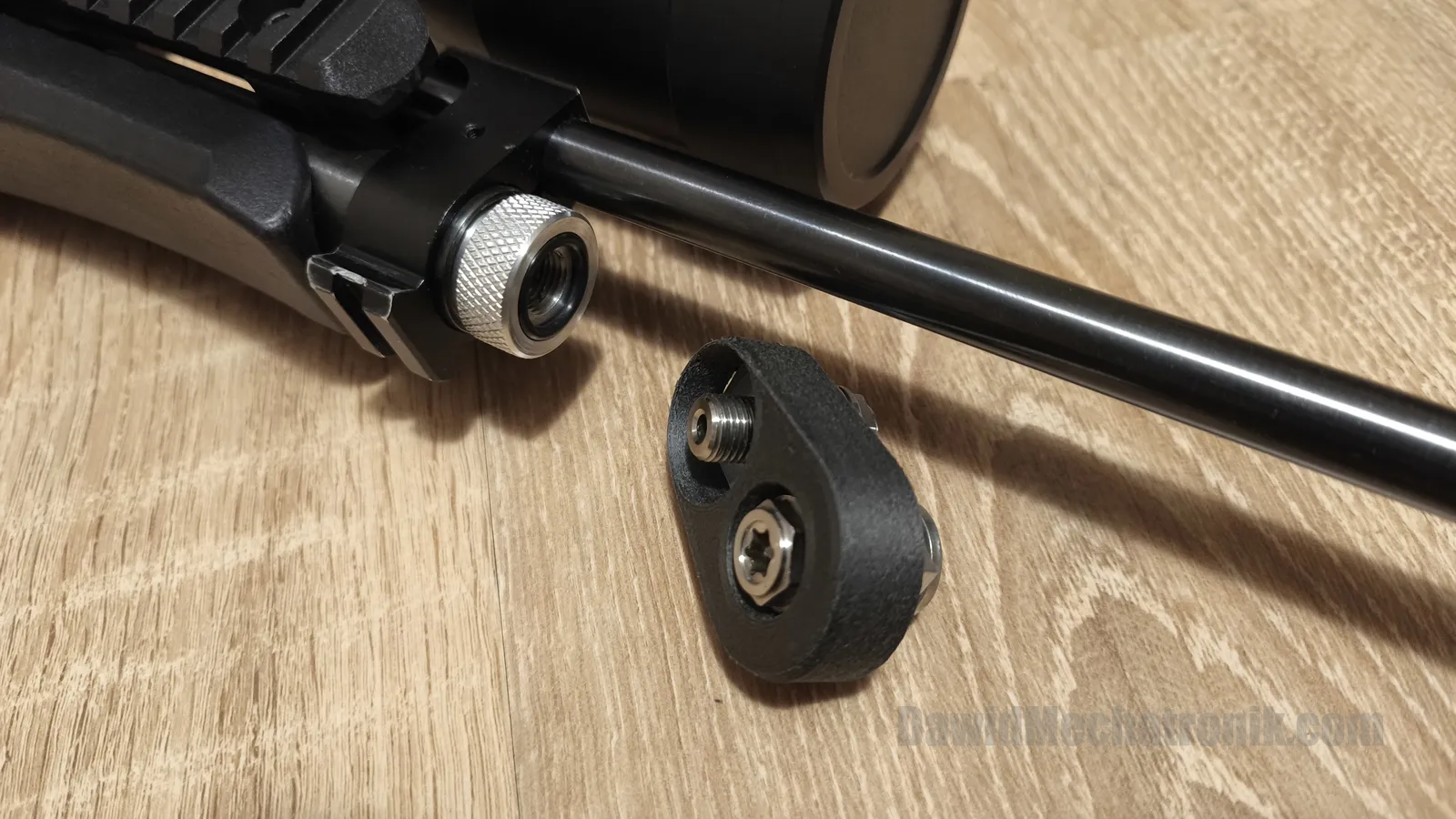

Then install the Drop Block plate together with the inner housing half. To tighten the banjo bolts, you will need either a Torx T40 driver or a 12 mm wrench.
